Kick harness pinout.

Post by cool_factor » Thu Oct 19, 2017 7:40 pm

Whats the kick harness pinout. I had it added to mine when purchased. Im assuming its buttons 4,5,6?

dee2eR
Inventor
Inventor
Posts: 923
Joined: Tue Aug 22, 2017 2:07 pm

Re: Kick harness pinout.

Post by dee2eR » Thu Oct 19, 2017 11:29 pm

This photo shows the pinout: https://drive.google.com/open?id=0B6UOe ... i1idTI1cHc
Buttons 4 and 5 are always on JAMMA too so you may want to only partitally use the kick harness.

User avatar
Happswitch
Site Admin
Site Admin
Posts: 27
Joined: Mon Aug 21, 2017 3:21 pm
Location: California

Re: Kick harness pinout.

Post by Happswitch » Fri Oct 20, 2017 6:03 pm

You'll find this and other hardware guides here:

https://arpicade.com/raspberryjamma-har ... lation-v3/
Live Fast, Die Last!

cool_factor
Legendary Contributor
Legendary Contributor
Posts: 166
Joined: Tue Sep 26, 2017 10:55 am

Re: Kick harness pinout.

Post by cool_factor » Sun Nov 12, 2017 3:22 pm

OK, thanks, found the dip switch setting info. If my cab is setup up with JAMMA buttons 1-3 and using kick harness for 4-6 (not hooked up yet) how should I set the dips? I have the capability of using 4 and 5 on JAMMA if need be but I already built the 6 wire harness. What would be the preferred setup or does it not matter? Thanks!!!

mR_CaESaR
Super Contributor
Super Contributor
Posts: 85
Joined: Thu Feb 15, 2018 11:59 pm
Location: Sydney, Australia

Re: Kick harness pinout.

Post by mR_CaESaR » Fri Feb 16, 2018 3:00 am

hey guys, I'm trying to make the kick harness plug into my astro city harness (via 10 way TE Amp Universal Plug) and I just noticed there's no ground pin on the kick harness, just the active pins for buttons 4, 5 and 6 (both P1 and P2).

Astro City kick harness is very similar to this (without the +5v)

https://wiki.arcadeotaku.com/w/Sega_Bla ... ring_Guide

Where's the best place I can tap into the RaspberryJamma to get a ground connection without soldering directly on the jamma edge?

Does the GPIO GND pin match the GND pin of the jamma edge?

wboy
Contributing Member
Contributing Member
Posts: 45
Joined: Mon Jan 29, 2018 1:20 pm

Re: Kick harness pinout.

Post by wboy » Fri Feb 16, 2018 1:39 pm

Have been meaning to post about this myself, but just didn't get around to it yet...

My Sega Astro City most of the time has had my Tekken Tag PCB within which has it's own kick harness for 4 & 5 (6 not used).

Many years back when I had my PC & J-PAC setup I got myself a few little connectors with screw in terminals that allow me to easily change over the 4,5,6 button wiring to the two kick harness (the J-PAC also had screw in terminals for 1 & 2P 3,4,5,6,7,8 & GND). Worked a treat!

Finally re-wired up my existing connector from the J-PAC to the RaspberryJAMMA Kick Harness pins. Ended up using and old PC case power/reset etc wiring as the connector fit perfectly on the pins.

Did notice there was no GNDs which are both wired when using the Tekken Tag kick harness J-PAC.

The button color wiring all seems right too, cabinet and kick harness.

Testing it with games I noticed button 4 & 5 (both players) only register a button press if I hold down 6 at the same time. 6 alone registers nothing.

Happy to wire off the two remaining GND screw in terminals on my connector if that makes the difference (no wiring guru).

Any advice appreciated. All buttons work as expected if I plug in the Tekken PCB and kick harness again. Would test the J-PAC but that is long retired.

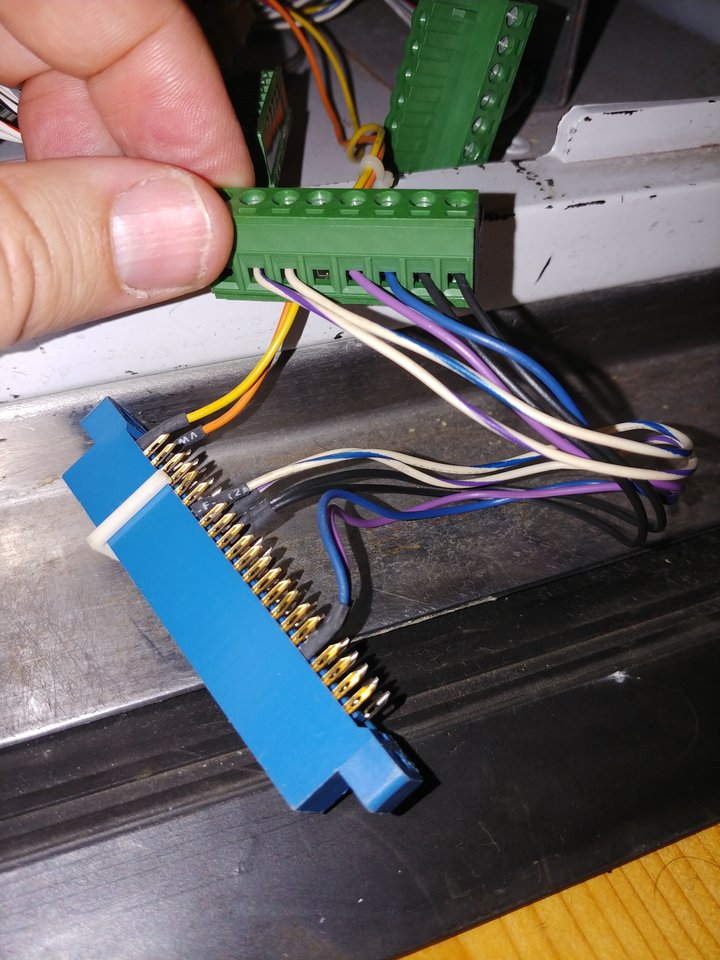

Few photos attached to assist in assessment! :D
Attachments

dee2eR
Inventor
Inventor
Posts: 923
Joined: Tue Aug 22, 2017 2:07 pm

Re: Kick harness pinout.

Post by dee2eR » Fri Feb 16, 2018 9:59 pm

mR_CaESaR wrote:
Fri Feb 16, 2018 3:00 am
hey guys, I'm trying to make the kick harness plug into my astro city harness (via 10 way TE Amp Universal Plug) and I just noticed there's no ground pin on the kick harness, just the active pins for buttons 4, 5 and 6 (both P1 and P2).

Astro City kick harness is very similar to this (without the +5v)

https://wiki.arcadeotaku.com/w/Sega_Bla ... ring_Guide

Where's the best place I can tap into the RaspberryJamma to get a ground connection without soldering directly on the jamma edge?

Does the GPIO GND pin match the GND pin of the jamma edge?
Kick grounds and JAMMA grounds (and in this case GPIO grounds are all the same), I recommend just joining the grounds up at the buttons under the control panel. There's no need at all to carry an extra ground for the kick harness.

dee2eR
Inventor
Inventor
Posts: 923
Joined: Tue Aug 22, 2017 2:07 pm

Re: Kick harness pinout.

Post by dee2eR » Fri Feb 16, 2018 10:04 pm

wboy wrote:
Fri Feb 16, 2018 1:39 pm

Testing it with games I noticed button 4 & 5 (both players) only register a button press if I hold down 6 at the same time. 6 alone registers nothing.

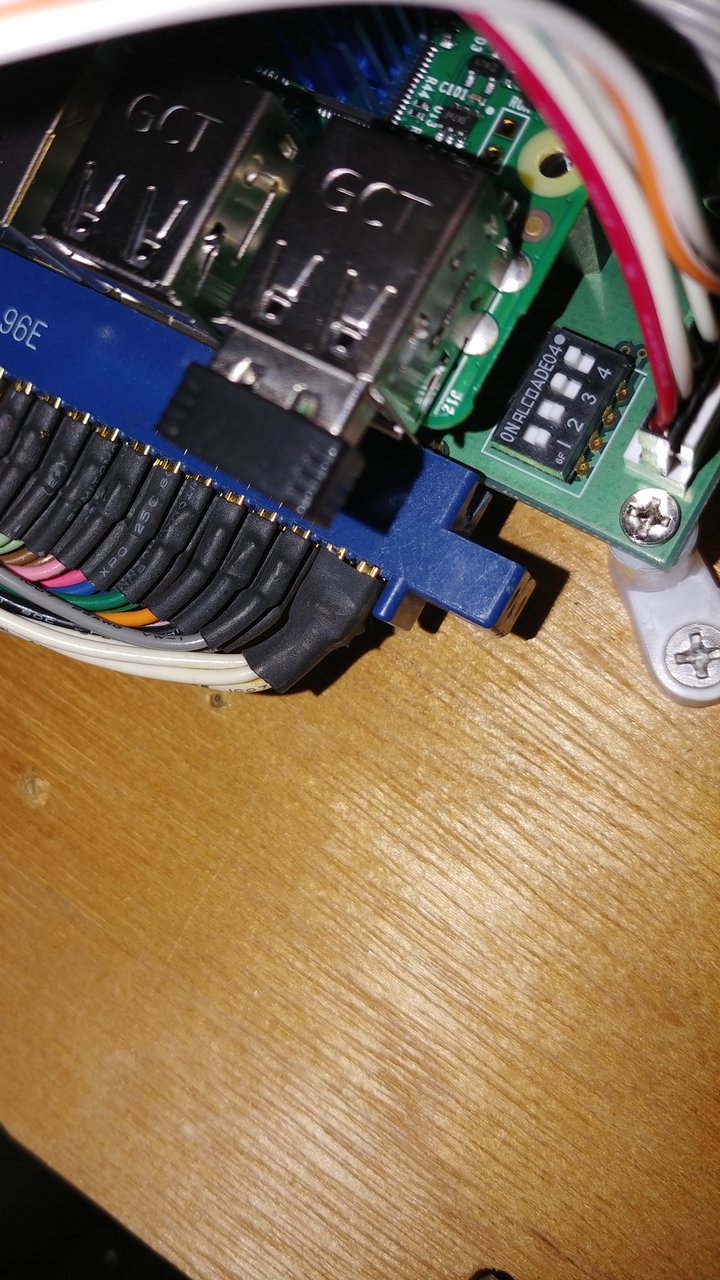

It could be a trick of the shadow but looks like your RaspberryJAMMA dipswitch settings are wrong. You will want 1 & 2 on and 3 & 4 off for JAMMA (with kick harness), looks like currently you have it configured as 6 buttons on JAMMA with ground connected to b6.

I love the recycled kick harness header.

mR_CaESaR
Super Contributor
Super Contributor
Posts: 85
Joined: Thu Feb 15, 2018 11:59 pm
Location: Sydney, Australia

Re: Kick harness pinout.

Post by mR_CaESaR » Sat Feb 17, 2018 5:37 am

dee2eR wrote:
Fri Feb 16, 2018 9:59 pm
Kick grounds and JAMMA grounds (and in this case GPIO grounds are all the same), I recommend just joining the grounds up at the buttons under the control panel. There's no need at all to carry an extra ground for the kick harness.
Yep understand, that's how I've done it. I just tried to make it like the cps1/cps2 kick harness where it has 2 gnd points.

I do have another question, my button 6 doesn't appear to be working. Any ideas why that would be the case?

Buttons 1 to 5 work perfectly for each player, but button 6 just has no response. There's definitely continuity from pins 3 and 6 to their respective quick disconnects, but I can't get an input from them.

Grounds to the buttons are also good.


Edit: the moment I went to 1 and 2 on, 3 and 4 off, button 6 worked perfectly fine for both P1 and P2

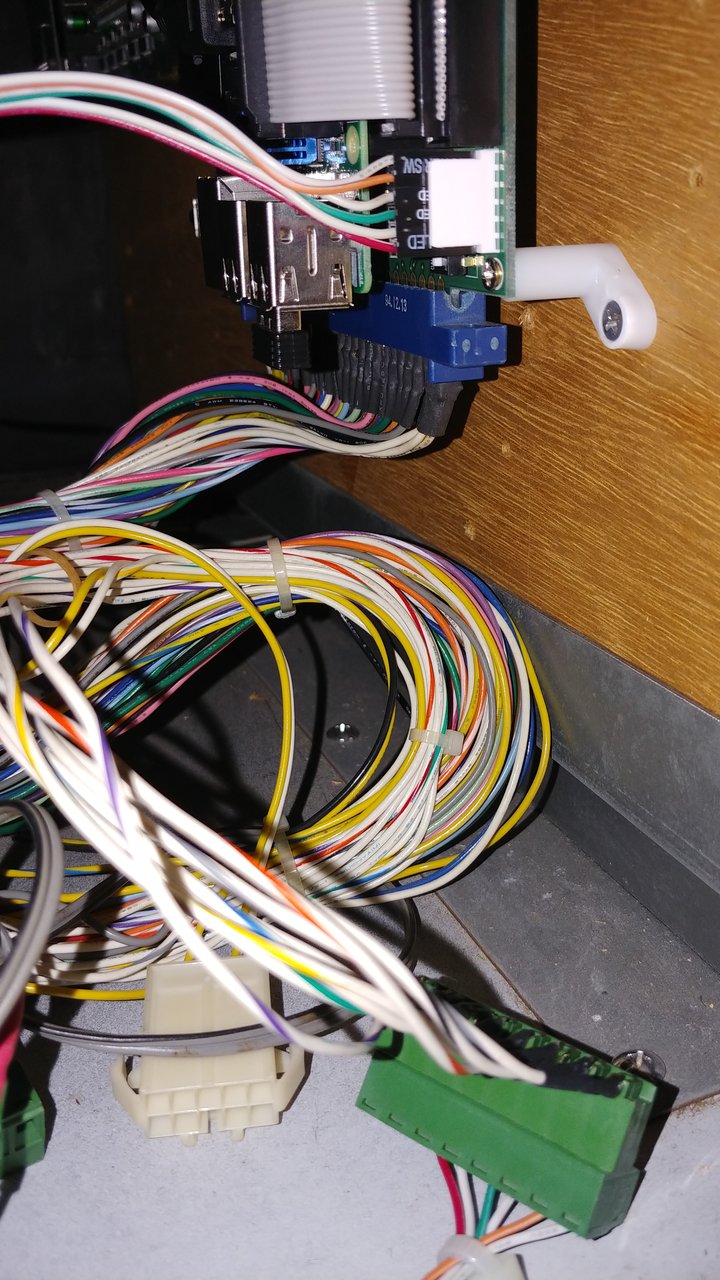

The harness I created to plug straight into the astro city kick harness


Last edited by mR_CaESaR on Sat Feb 17, 2018 6:34 am, edited 1 time in total.

dee2eR
Inventor
Inventor
Posts: 923
Joined: Tue Aug 22, 2017 2:07 pm

Re: Kick harness pinout.

Post by dee2eR » Sat Feb 17, 2018 6:26 am

looks like you need to swap the dipswitches too. You want 1&2 on, 3&4 off for normal JAMMA and a kick harness.
